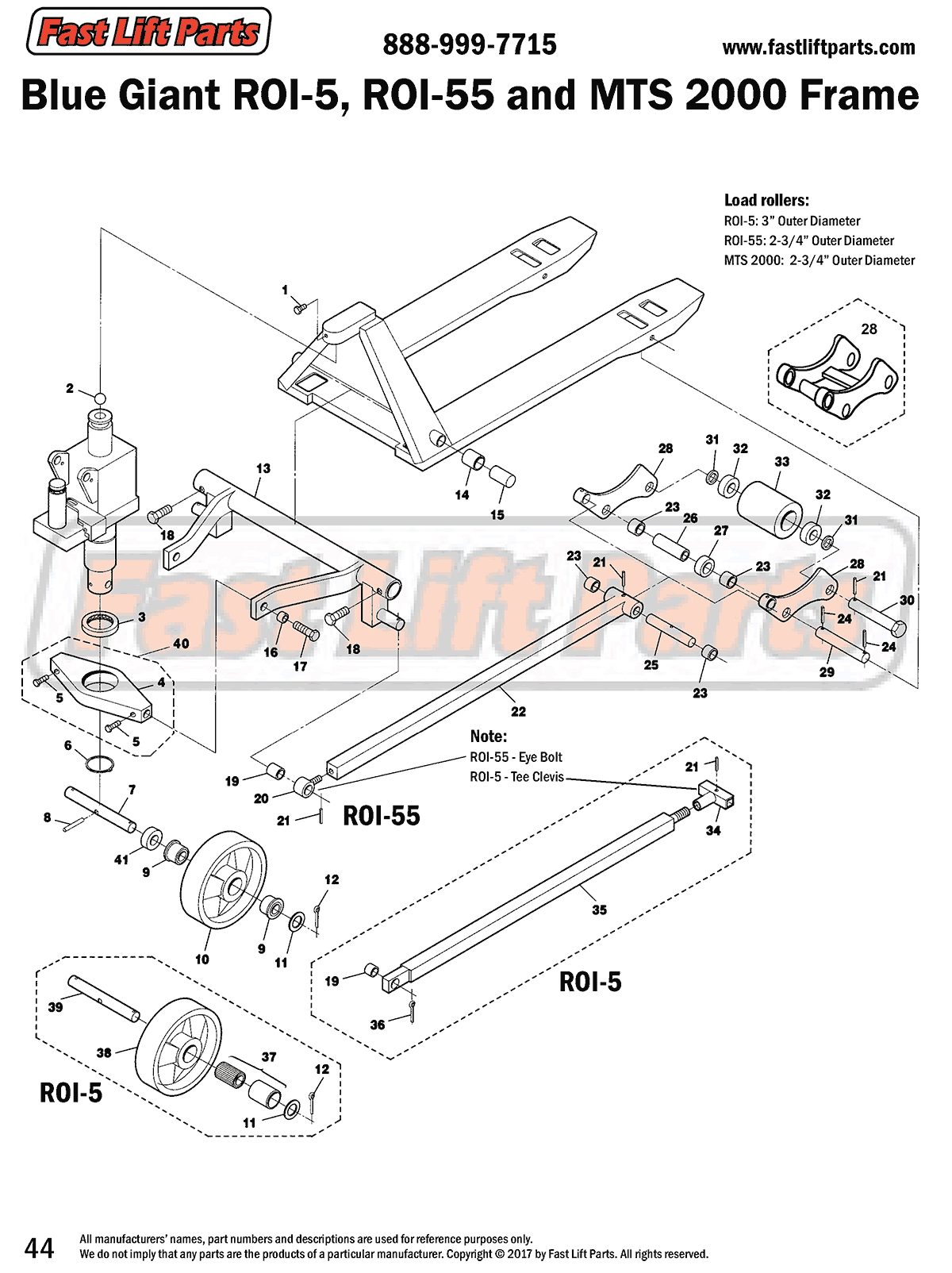

*Blue Giant ROI-55/5 & MTS 2000 Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. BG 010-054 Screw
  2. BG 018-523 Ball
  3. BG 018-516 Traverse Bearing
  4. BG 780-185 Traverse
  5. BG 014-016 Set Screw
  6. BG 013-039 Snap Ring
  7. BG 107-200 Steer Wheel Axle
  8. BG 013-090 Roll Pin
  9. BG 018-587 Bearing
  10. Steer Wheel Assembly Options
  11. BG 111-141 Washer
  12. BG 013-025 Cotter Pin
  13. No Longer Available
  14. BG 018-071 Bushing
  15. BG 110-046 Lifting LinkPin
  16. BG 018-071 Bushing
    BG 018-001 Bushing
  17. BG 010-064 Bolt
  18. BG 014-016 Set Screw
    BG 010-095 Screw
  19. BG 018-001 Bushing
  20. BG 782-321 Eye Bolt
  21. BG 013-010 Roll Pin
  22. BG 782-548 Push Rod
  23. BG 018-001 Bushing
  24. BG 013-066 Roll Pin
  25. BG 106-172 Push Rod Axle
  26. BG 108-330 Sleeve
  27. BG 104-054 Exit Roller
  28. BG 788-855 Load Roller Bracket, Pair
    BG 805-604 Load Roller Bracket, Pair
    BG 300-773 Load Roller Bracket, 1 Piece
  29. BG 300-019 Pivot Axle
  30. BG 106-170 Load Roller Axle
  31. BG 106-046 Split Ring
  32. BG 018-500 Bearing (OEM wheel only)
  33. Load Roller Assembly Options
  34. BG 790-426 Tee Clevis
  35. No Longer Available
  36. BG 013-025 Cotter Pin
  37. BG 111-077 Roller Bearing & Sleeve
  38. BG 111-078-N-A Steer Wheel Assy, ROI-5
  39. BG 107-200 Steer Wheel Axle
  40. BG 012-289 Spacer
