*Crown Newer PTH 50 Frame

(Serial #'s 7-512501 and higher)

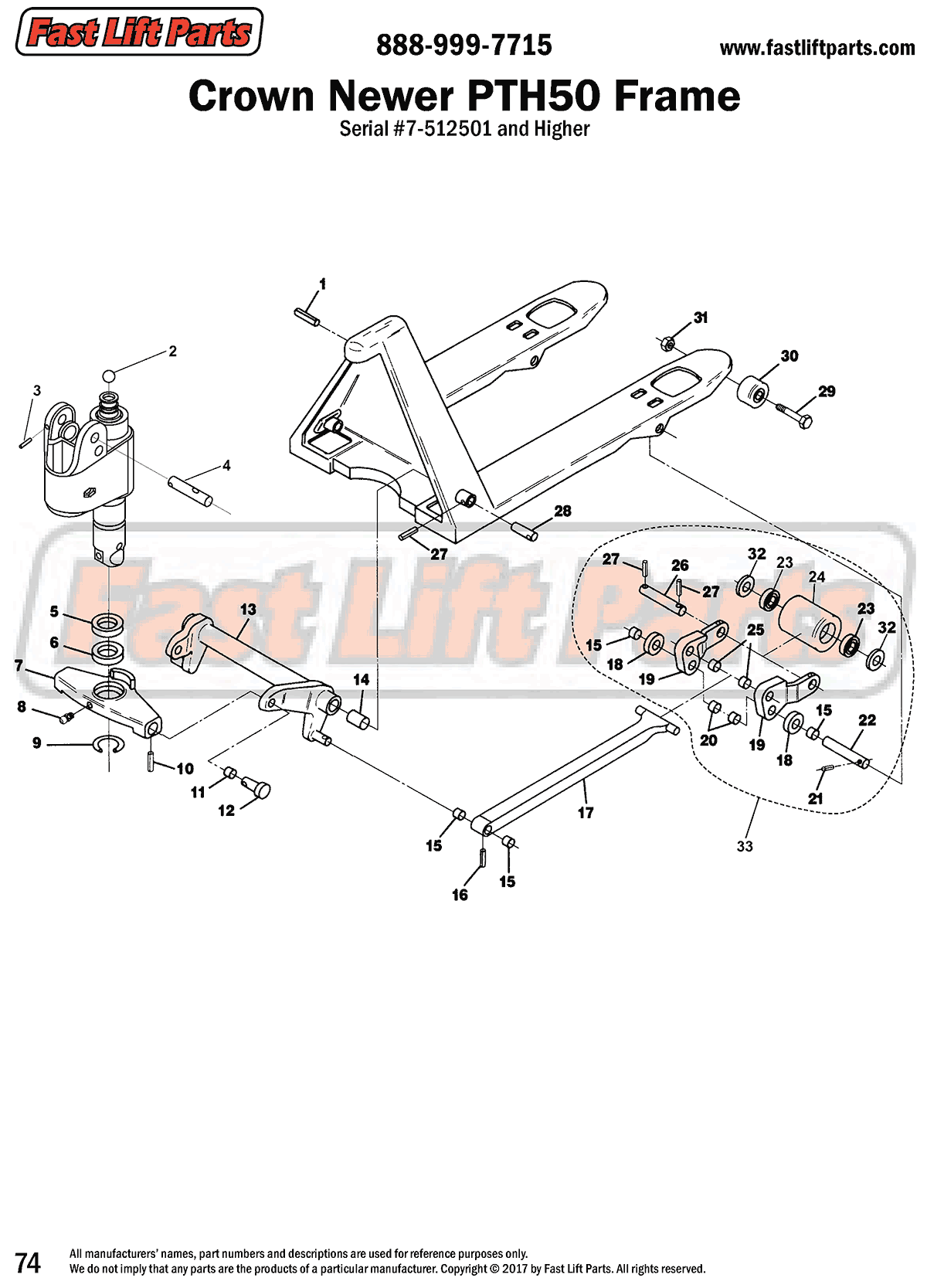

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

1. CR 50000-014 Roll Pin
2. CR 55001-010 Ball
3. CR 50000-015 Roll Pin
4. CR 816817 Handle Pin
5. CR 44468 Washer
6. CR 55018-001 Traverse Bearing
7. CR 45671 Traverse
8. CR 54011-001 Lube Fitting
9. CR 50012-024 Snap Ring
10. CR 50000-010 Roll Pin
11. CR 41201 Bushing
12. CR 44467 Pin
13. CR 819177 Lifting Link, 27" Wide Jack
14. CR 55084-002 Bushing
15. CR 42053-011 Bushing
16. CR 50000-016 Roll Pin
17. CR 44488-006 Push Rod Assembly
18. CR 44777 Spacer
19. CR 44501 Load Roller Bracket (Pair)
20. CR 42053-012 Bushing
21. CR 50000-011 Roll Pin
22. CR 45670 Pivot Axle
23. CR 55002-004 Bearing
24. Load Wheel Assembly Options
25. CR 41139 Bushing
26. CR 45676 Axle
27. CR 50000-017 Roll Pin
28. CR 45669 Lift Link Pin
29. CR 50007-023 Bolt
30. CR 44461 Entry Roller
31. CR 50008-049 Nut
32. CR 44516 Washer
33. CR 44500-001 Load Wheel & Bracket Assembly
