• Global 334475 Frame Line Drawing
1 1

Global

*Global 334475 Frame

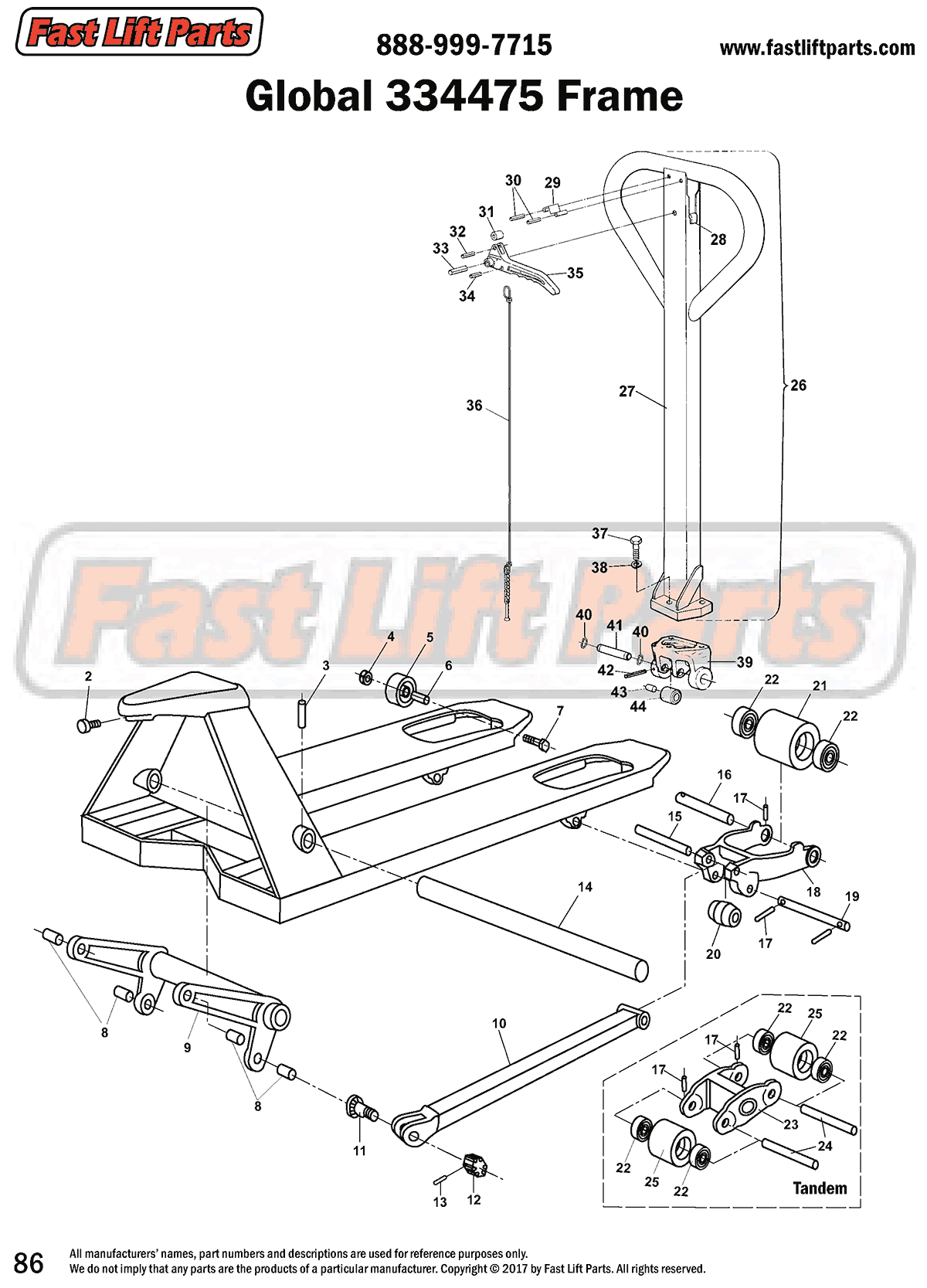

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. HL F103 Screw
  2. HL F1502 Roll Pin
  3. HL F106 Nut
  4. HL F108 Entry Roller
  5. HL F109 Sleeve
  6. HL F111 Bolt
  7. HL F102 Bushing
  8. HL F1501 Lifting Link Assembly, 27" wide frame
  9. HL F1518 Push Rod, 48" fork
  10. HL F126 Eccentric Pin
  11. HL F123 Nut
  12. HL F124 Spring Pin
  13. HL F1503 Lifting Link Shaft, 27" wide frame
  14. HL F1516 Shaft
  15. HL F1515 Load Wheel Axle
  16. HL F112 Spring Pin
  17. HL F1514 Load Wheel Bracket
  18. HL F1512 Pivot Axle
  19. HL F1511B Load Roller Assembly (Single) Black Ultra Poly on Steel
  20. GWK-334475-LW Load Wheel Kit, (2) Poly Load Roller Assemblies W/Bearings, Axles and Fasteners
  21. HL F115 Bearing
  22. HL F1507 Load Wheel Bracket (Tandem)
  23. HL F1505 Axle Bolt Assembly, Includes Sleeve & Lock Nut
  24. HL F1510B Load Roller Assembly (Tandem) Black Ultra Poly on Steel
  25. HL H101-A Handle Assembly
  26. HL H101 Handle Frame
  27. HL H108 Rubber Cushion
  28. HL H103-A Blade Spring
  29. HL H104 Spring Pin
  30. HL H111 Roller
  31. HL H105 Spring Pin
  32. HL H102 Spring Pin
  33. HL H112 Spring Pin
  34. HL H106 Control Lever
  35. HL H107 Rod and Chain Assembly. NLA, see HL H101-A.
  36. HL H109 Handle Bolt
  37. HL H110 Lock Washer
  38. HL 103 Handle Bracket
  39. HL 108 Snap Ring
  40. HL 107 Shaft
  41. HL 106 Spring Pin
  42. HL 105 Bushing
  43. HL 104 Steel Roller
