*Jet A, L & J Frame

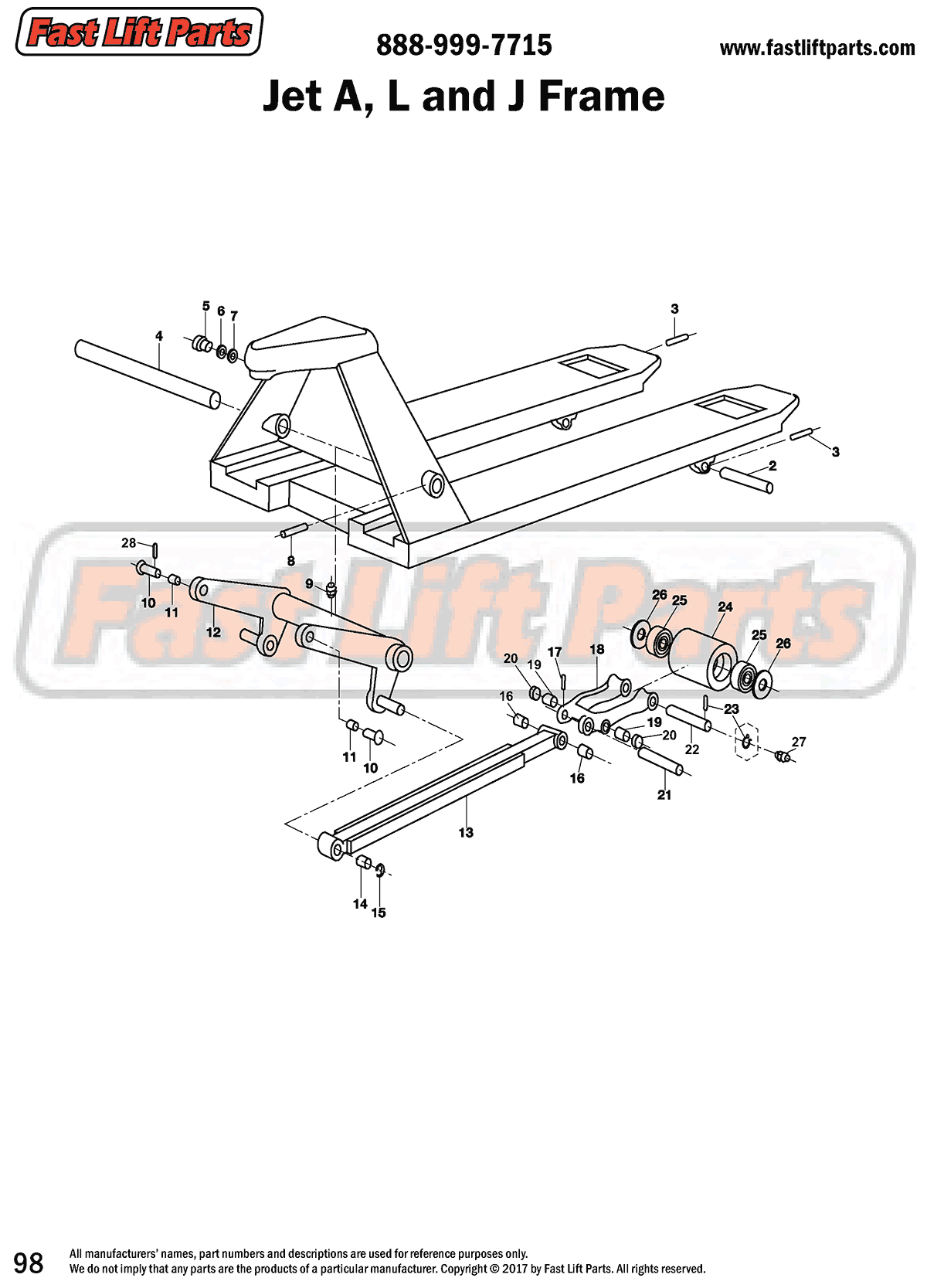

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. JT PT2748L-078 Pivot Axle
    JT PT2748J-078 Pivot Axle
  2. JT PT2748A-079 Spring Pin
    JT PT2748J-079 Spring Pin
  3. JT PT2748A-071 Lifting Link Shaft
  4. JT PT2748A-070 Bolt
  5. JT PT2748A-069 Lock Washer
  6. JT PT2748A-068 Washer
  7. JT PT2748A-077 Spring Pin
  8. JT PT2748A-073 Grease Fitting
  9. JT PT2748A-074 Shoulder Pin
  10. JT PT2748A-073 Grease Fitting
  11. JT PT2748A-076 Lifting Link
  12. JT PT2748J-088 Push Rod
  13. JT PT2748A-090 Bushing
  14. JT PT2748A-089 E-Ring
  15. JT PT2748A-087 Bushing
    JT PT2748J-087 Bushing
  16. JT PT2748A-081 Roll Pin
  17. JT PT2748L-083 Load Wheel Bracket
    JT PT2748J-083 Load Wheel Bracket
  18. JT PT2748L-085 Bushing
    JT PT2748J-085 Bushing
  19. JT PT2748L-084 Exit Roller
  20. JT PT2748L-086 Push Rod Pin
    JT PT2748J-086 Push Rod Pin
  21. JT PT2748A-082 Load Roller Axle
    JT PT2748J-082 Load Roller Axle
  22. JT PT2748L-081 Roll Pin
    JT PT2748J-081 Snap Ring
    (use w/ JT PT2748J-082)
  23. Load Roller Assembly Options
  24. JT PT2748L-080-BS Bearing
  25. JT PT2748L-080BNS Washer
  26. JT PT2748A-082B Grease Fitting
  27. JT PT2748A-054 Roll Pin
