• Jet W Frame Line Drawing
1 1

Jet

*Jet W Frame

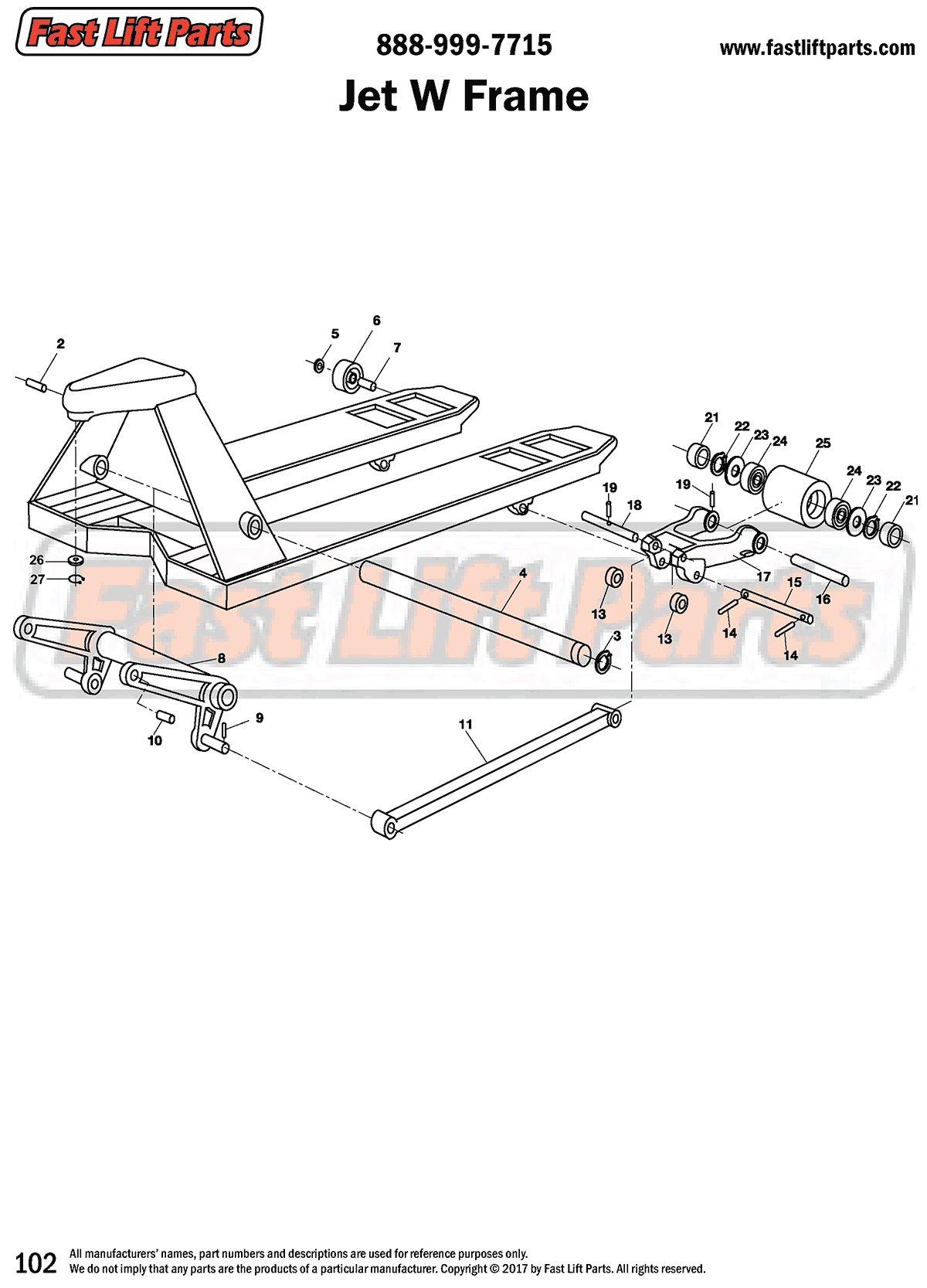

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. JT PT2748W-02 Roll Pin
  2. JT PT2748W-33 Snap Ring
  3. JT PT2748W-34 Lifting Link Shaft
  4. JT PT2748W-36 C-Clip
  5. JT PT2748W-37 Entry Roller
  6. JT PT2748W-38 Shaft
  7. JT PT2748W-14 Lifting Link Shaft
  8. JT PT2748W-04 Roll Pin
  9. JT PT2748W-13 Arm Pin
  10. JT PT2748W-17 Push Rod
  11. JT PT2748W-19 Exit Roller
  12. JT PT2748W-18 Spring Pin
  13. JT PT2748W-26 Pivot Shaft
  14. JT PT2748W-27 Load Roller Axle
  15. JT PT2748W-22 Load Wheel Bracket
  16. JT PT2748W-21 Push Rod Axle
  17. JT PT2748W-18 Spring Pin
  18. JT PT2748W-28 Spacer
  19. JT PT2748W-31 Locking Ring
  20. JT PT2748W-30 Washer
  21. JT PT2748W-29-BS Bearing
  22. Load Wheel Assembly Options
  23. JT PT2748W-69A Washer
  24. JT PT2748W-69B Snap Ring
