*Lift-Rite (Big Joe) L-55 Frame

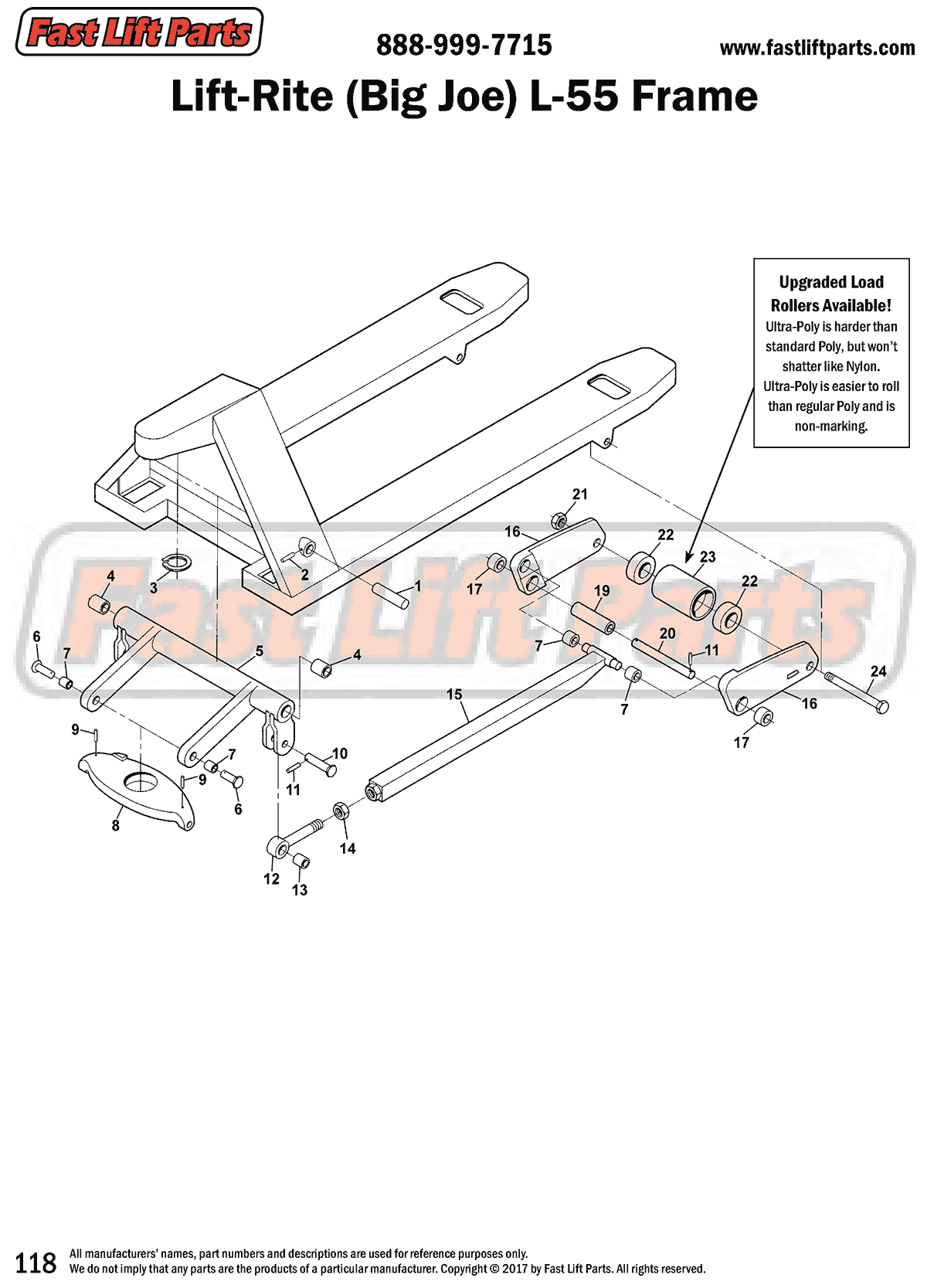

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. LF 20204 Pin
  2. LF 20269 Split Pin
  3. LF 20232 Snap Ring
  4. LF 20203A Lifting Link Bushing
  5. LF 20202 Lifting Link, 27" Wide Jack (Special Order)
  6. LF 20207 Thrust Plate Shoulder Pin
  7. LF 20206 Bushing
  8. LF 20231 Traverse
  9. LF 10205 Roll Pin
  10. LF 20227 Eye Bolt Pin
  11. LF 10269 Roll Pin
  12. LF 20226 Eye Bolt
  13. LF 20226A Bushing
  14. LF 10224AF Jam Nut
  15. LF 20224x48 Push Rod. NLA.
  16. LF 20212 Load Roller Brackets
  17. LF 20203 Bushing
  18. LF 10203 Bushing
  19. LF 20220 Exit Roller
  20. LF 20219 Pivot Axle
  21. LF 20218 Lock Nut
  22. LF 20214 Load Roller Bearing
  23. Load Roller Assembly Options
  24. LF 20215 Axle Assembly
