*Magnum 5000 Frame

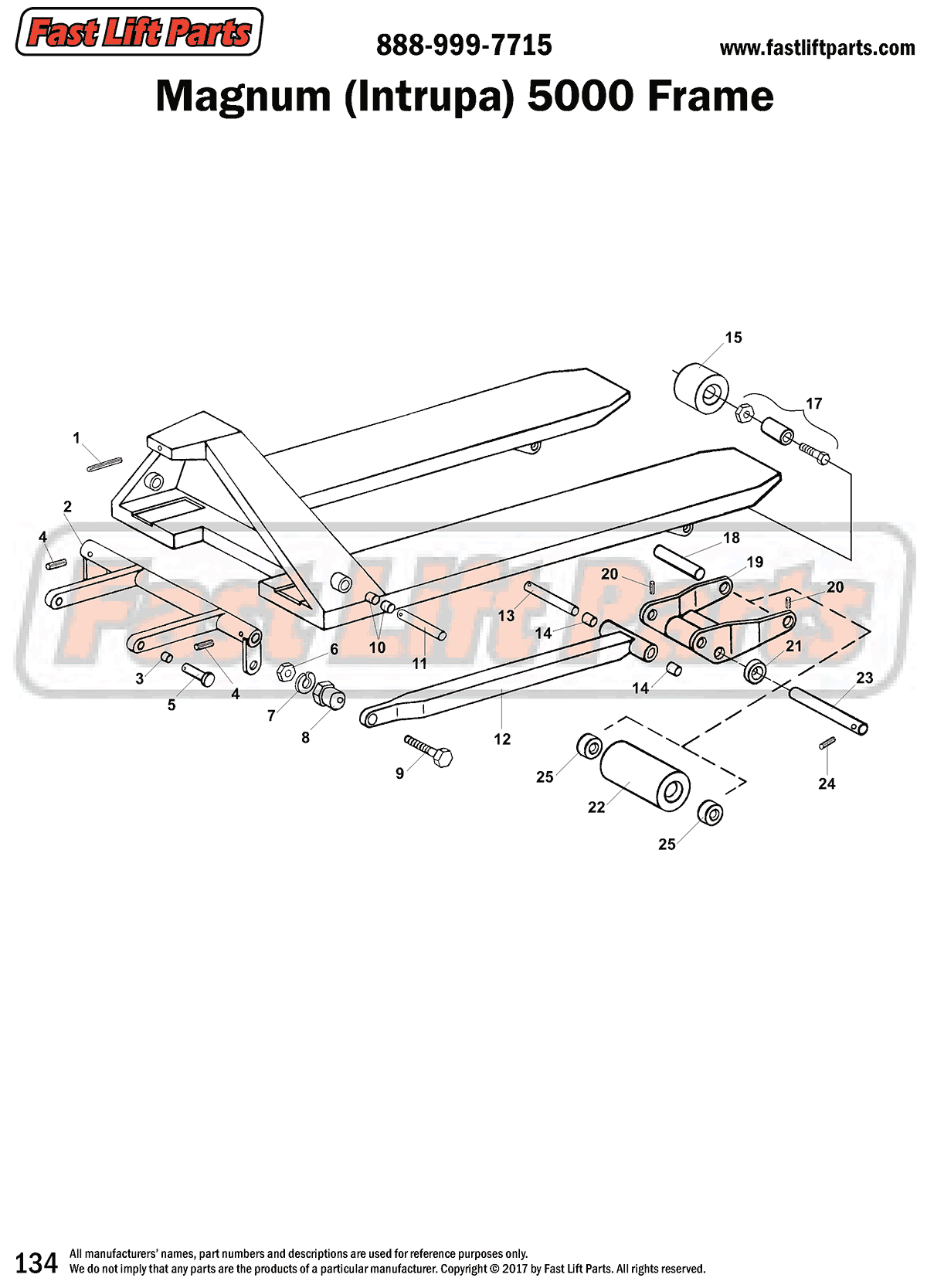

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. MG 520 Roll Pin
  2. MG 522 Lifting Link, 27" Wide Jack (No Longer Available)
  3. MG 108 Bushing
  4. MG 526 Roll Pin
  5. MG 525 Pin
  6. MG 529 Lock Nut
  7. MG 519 Lock Washer
  8. MG 527 Eccentric Pin
  9. MG 528 Bolt
  10. MG 521 Bushing
  11. MG 530 Lifting Link Pin
  12. MG 535 Push Rod, 48" Forks (No Longer Available)
  13. MG 531 Pin
  14. MG 108 Bushing
  15. MG 545 Entry Roller
  16. MG 546 Bushing & Axle Assembly
  17. MG 540 Axle
  18. MG 541 Load Roller Bracket (No Longer Available)
  19. MG 542 Roll Pin
  20. MG 544 Exit Roller
  21. Load Roller Assembly Options
  22. MG 543 Axle
  23. MG 152 Roll Pin
  24. MG 539 Bearing
