• Hydraulic Unit Identification - *Mobile ECO I-55 Hydraulic Unit

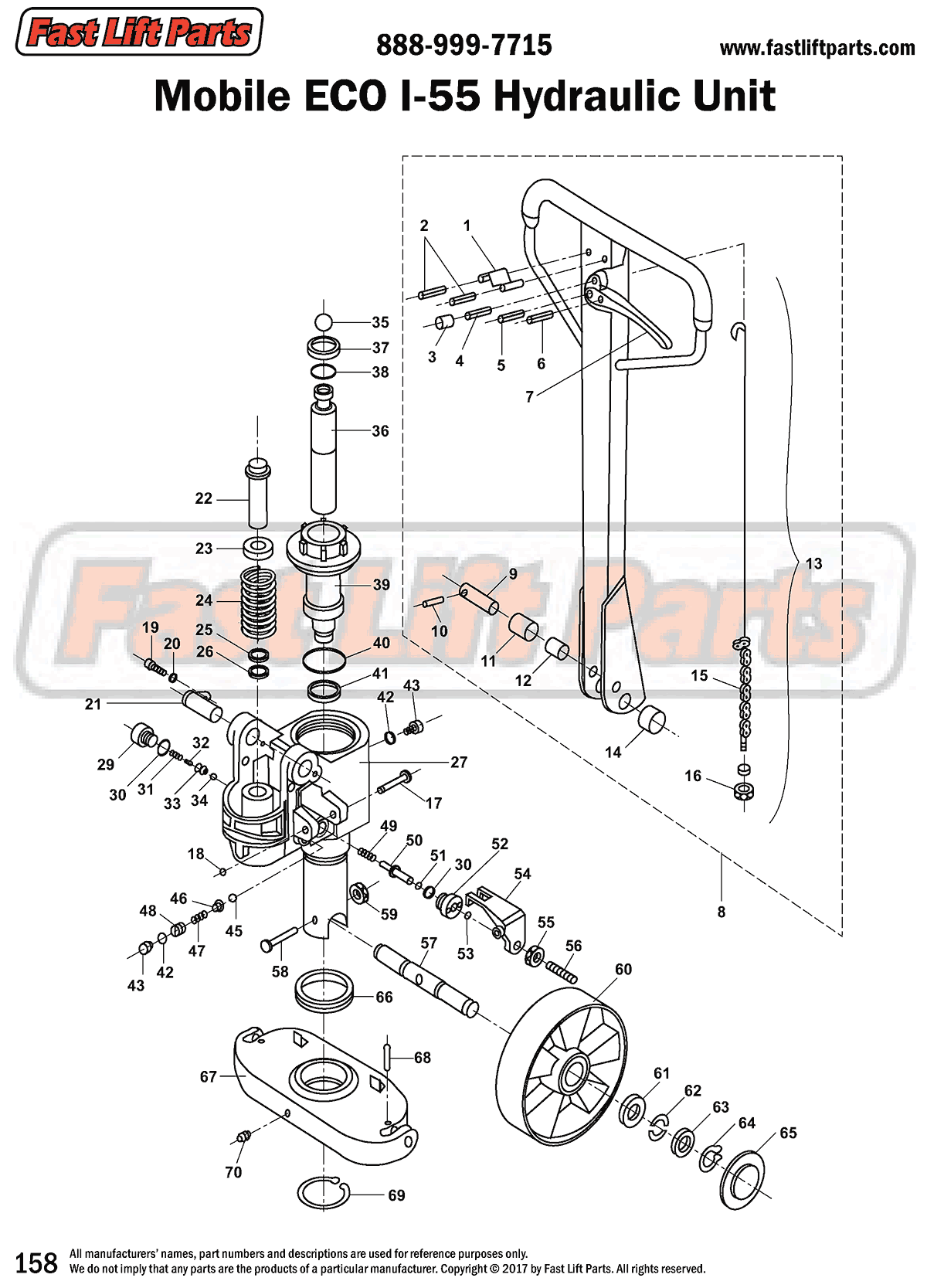

  • Mobile ECO I-55 Hydraulic Unit Line Drawing
1 2

Mobile

*Mobile ECO I-55 Hydraulic Unit

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. MO 12E101 Control Handle Spring
  2. MO 12E102 Roll Pin
  3. MO 12E103 Control Handle Roller
  4. MO 12E104 Roll Pin
  5. MO 12E105 Roll Pin
  6. MO 12E106 Roll Pin
  7. MO 12E107 Control Lever
  8. MO 120E1 Handle Assembly
    (includes Items 1-7,9-14)
  9. MO 12E109 Handle Pin
  10. MO 12E110 Roll Pin
  11. MO 12E111 Handle Pressure Roller
  12. MO 12E112 Handle Pin Bushing
  13. MO 12E113-A Control Handle Rod Assy
  14. MO 12E114 Handle Bushing
  15. MO 12E117 Screw
  16. MO 12E153 Lock Washer
  17. MO 12E118 Handle Pivot Pin
  18. MO 12E147 Pump Piston
  19. MO 12E148 Washer
  20. MO 12E149 Handle Return Spring
  21. MO 12E150 Wiper
  22. MO 12E151 U-Cup
  23. MO 120E0 After-market Pump Assembly
  24. MO 12E154 Retaining Ring
  25. MO 12E119 Screw Plug
  26. MO 12E120 Copper Washer
  27. MO 12E121 Spring
  28. MO 12E122 Damping Valve Spindle
  29. MO 12E123 Damping Valve Seat
  30. MO 12E124 Ball
  31. MO 12E146 Ball
  32. MO 12E152 Lift Piston
  33. MO 12E145 Wiper
  34. MO 12E144 O-Ring
  35. MO 12E143 Cylinder Cap
  36. MO 12E142 O-Ring
  37. MO 12E141 U-Cup
  38. MO 12E126 Copper Washer
  39. MO 12E127 Bolt
  40. MO 12E140 Lever Plate Bolt
  41. MO 12E139 Ball Valve
  42. MO 12E138 Ball Valve Seat
  43. MO 12E137 Spring
  44. MO 12E136 Bolt
  45. MO 12E128 Spring
  46. MO 12E129 Strike Pin
  47. MO 12E130 O-Ring
  48. MO 12E131 Sleeve
  49. MO 12E132 O-Ring
  50. MO 12E135 Lever Plate
  51. MO 12E134 Nut
  52. MO 12E133 Adjusting Screw
  53. MO 120E2 Steer Wheel Axle
  54. MO 120E3 Steer Axle Bolt
  55. MO 120E44 Steer Axle Nut
  56. Steer Wheel Assembly Options
  57. MO 120E9 Bearing
  58. MO 120E10 Locking Ring
  59. MO 120E11 Lock Ring Cover
  60. MO 120E12 Locking Ring
  61. MO 120E13 Hub Cap
  62. MO 120E4 Thrust Bearing
  63. MO 120E5 Thrust Plate
  64. MO 120E6 Roll Pin
  65. MO 120E7 Locking Ring
  66. MO 120E41 Lube Fitting

Seal Kits:
