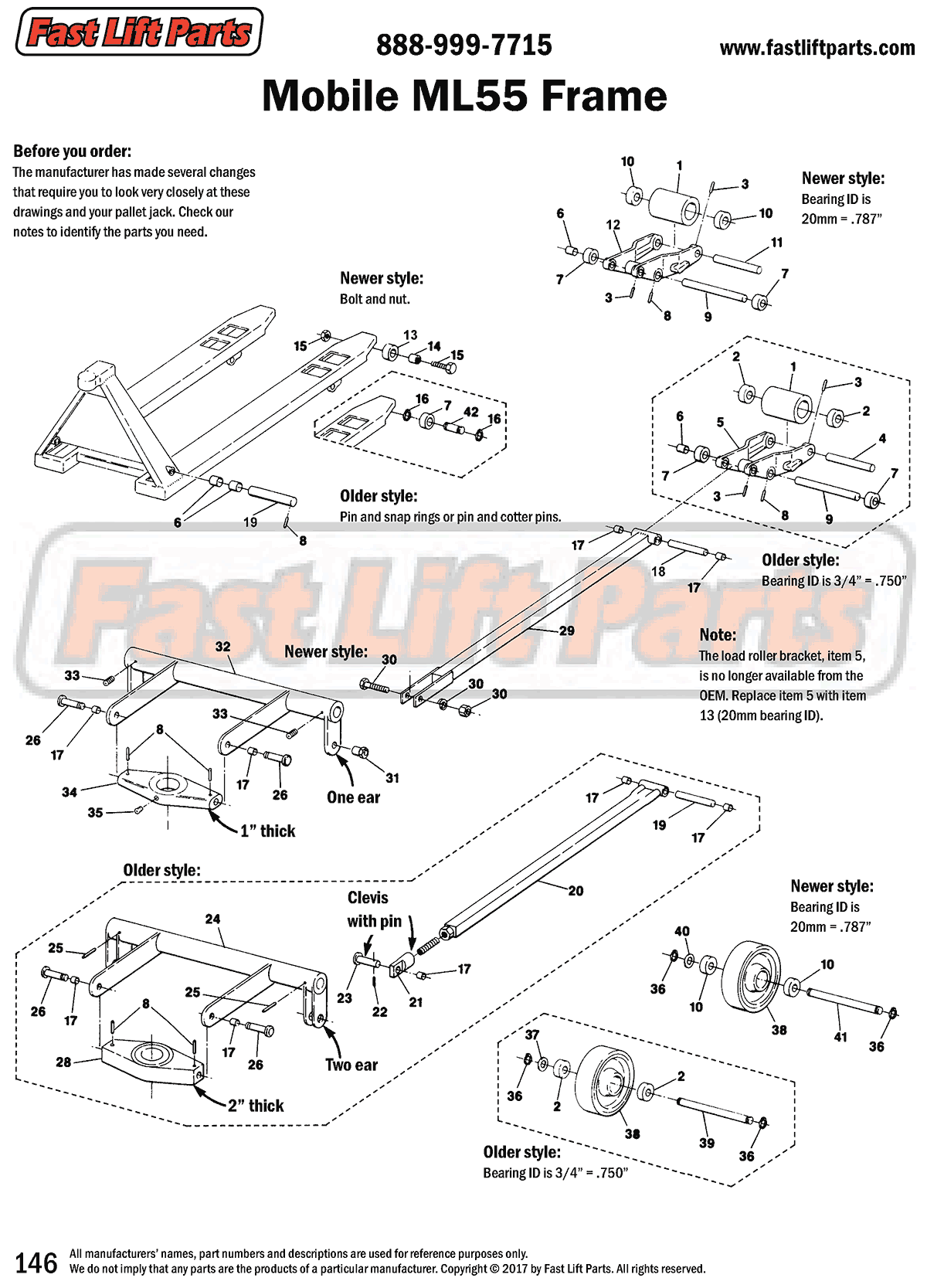

• Mobile ML55 Frame Line Drawing
1 1

Mobile

*Mobile ML55 Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. Load Roller Assembly Options
  2. MO 210 Bearing
  3. MO 404 Roll Pin
  4. MO 211 Load Roller Axle
  5. No Longer Available. Replaced by Item #12.
  6. MO 610 Bushing
  7. MO 402 Entry or Exit Roller
  8. MO 609 Roll Pin
  9. MO 214 Pivot Axle
  10. MO 210-1 Bearing
  11. MO 211-1 Load Roller Axle
  12. MO 400-1 Load Roller Bracket
  13. MO 300 Entry Roller
  14. MO 311 Bushing
  15. MO 310 Bolt and Nut
  16. MO 2050 Snap Ring
    MO 303 Cotter Pin
  17. MO 606 Bushing
  18. MO 611 Lifting Link (Older style)
    MO 611-1 Lifting Link (Newer style)
  19. MO 515 Push Rod Axle
  20. MO 502 Push Rod
  21. MO 520 Clevis
  22. MO 404 Roll Pin
  23. MO 512 Pin
  24. No Longer Available
  25. MO 612 Roll Pin
  26. MO 605 Shoulder Pin
  27. No Longer Available
  28. MO 505 Push Rod
  29. MO 526 Bolt,Nut & Washer
  30. MO 525 Eccentric
  31. No Longer Available
  32. MO 2053 Set Screw
  33. No Longer Available
  34. MO 658 Grease Fitting
  35. MO 2050 Snap Ring
  36. MO 103 Washer
  37. Steer Wheel Assembly Options
  38. MO 104 Steer Wheel Axle
  39. MO 103-1 Washer
  40. MO 104-1 Steer Wheel Axle
  41. MO 302 Pin
