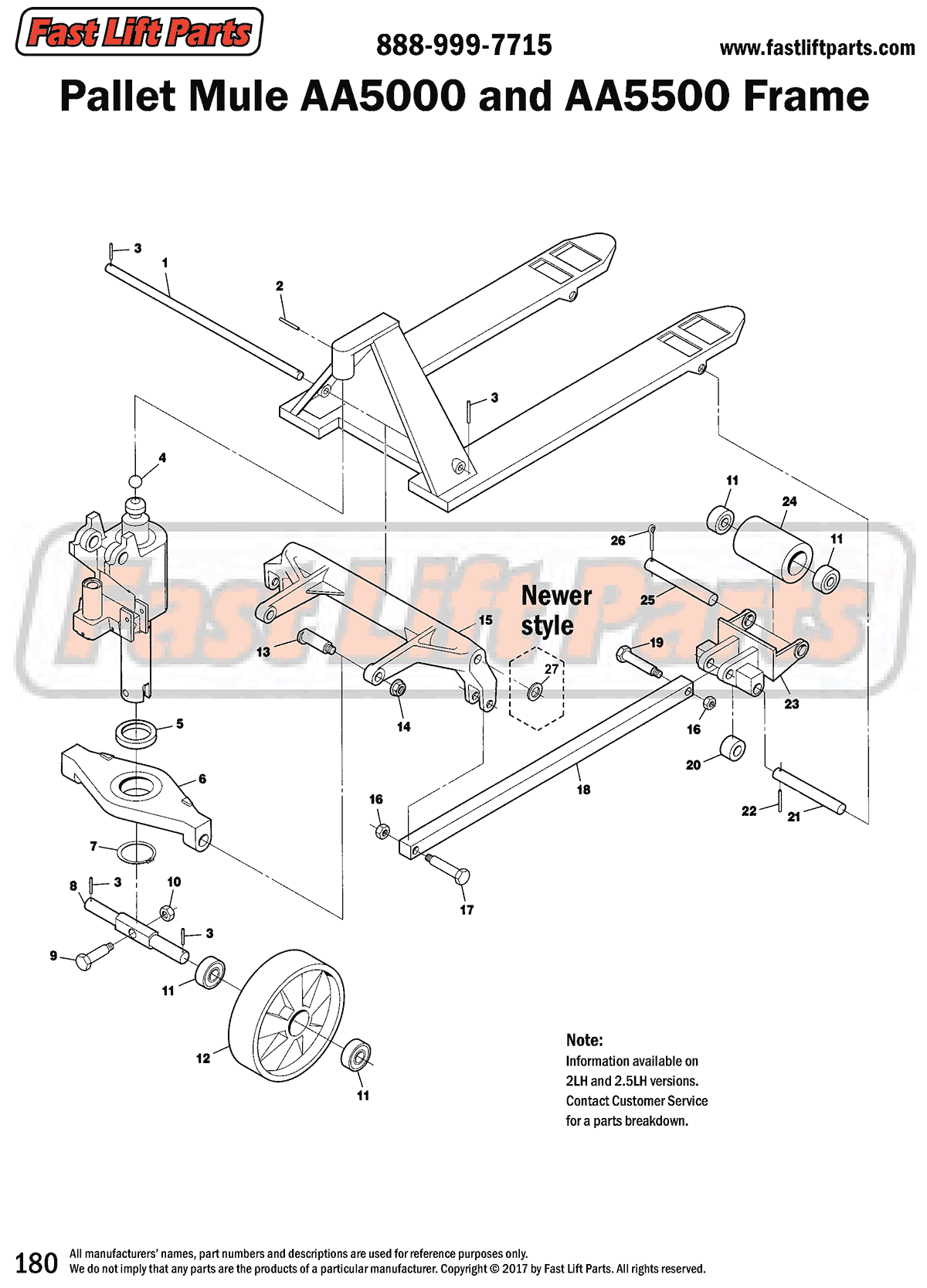

*Pallet Mule AA5000 & AA5500 Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

1. PU AA-55-7 Lifting Link Shaft
2. PU AA-57 Roll Pin
3. PU AA-50 Roll Pin
4. PU AA-44 Ball
5. PU AA-30 Thrust Bearing
6. PU AA-61 Traverse
7. PU AA-28 Snap Ring
8. PU AA-46 Steer Wheel Axle
9. PU AA-29 Shoulder Bolt
10. PU AA-29N Lock Nut
11. PU AA-64 Bearing
12. Steer Wheel Assembly Options
13. PU AA-36 Shoulder Bolt
14. PU AA-39 Nut
15. No Longer Available
16. PU AA-51 Lock Nut
17. PU AA-60 Bolt
18. PU AA-58-48 Push Rod
    PU AA-58-2.9 Push Rod, 2.9" Lwrd Height
19. PU AA-74 Bolt
20. PU AA-52 Exit Roller
    PU AA-52-2.9 Exit Roller,2.9" Lwrd Height
21. PU AA-62 Pivot Axle
    PU AA-62-2.9 Pivot Axle,2.9" Lwrd Height
22. PU AA-63 Roll Pin
23. PU AA-59-2.9 Load Roller Bracket
24. Load Roller Assembly Options
25. PU AA-66 Load Roller Axle
26. PU AA-67 Cotter Pin
27. PU AA-3/4 Washer
