  • Palletmaster HSW Hydraulic Unit Line Drawing
1 2

Palletmaster

*Palletmaster HSW Hydraulic Unit

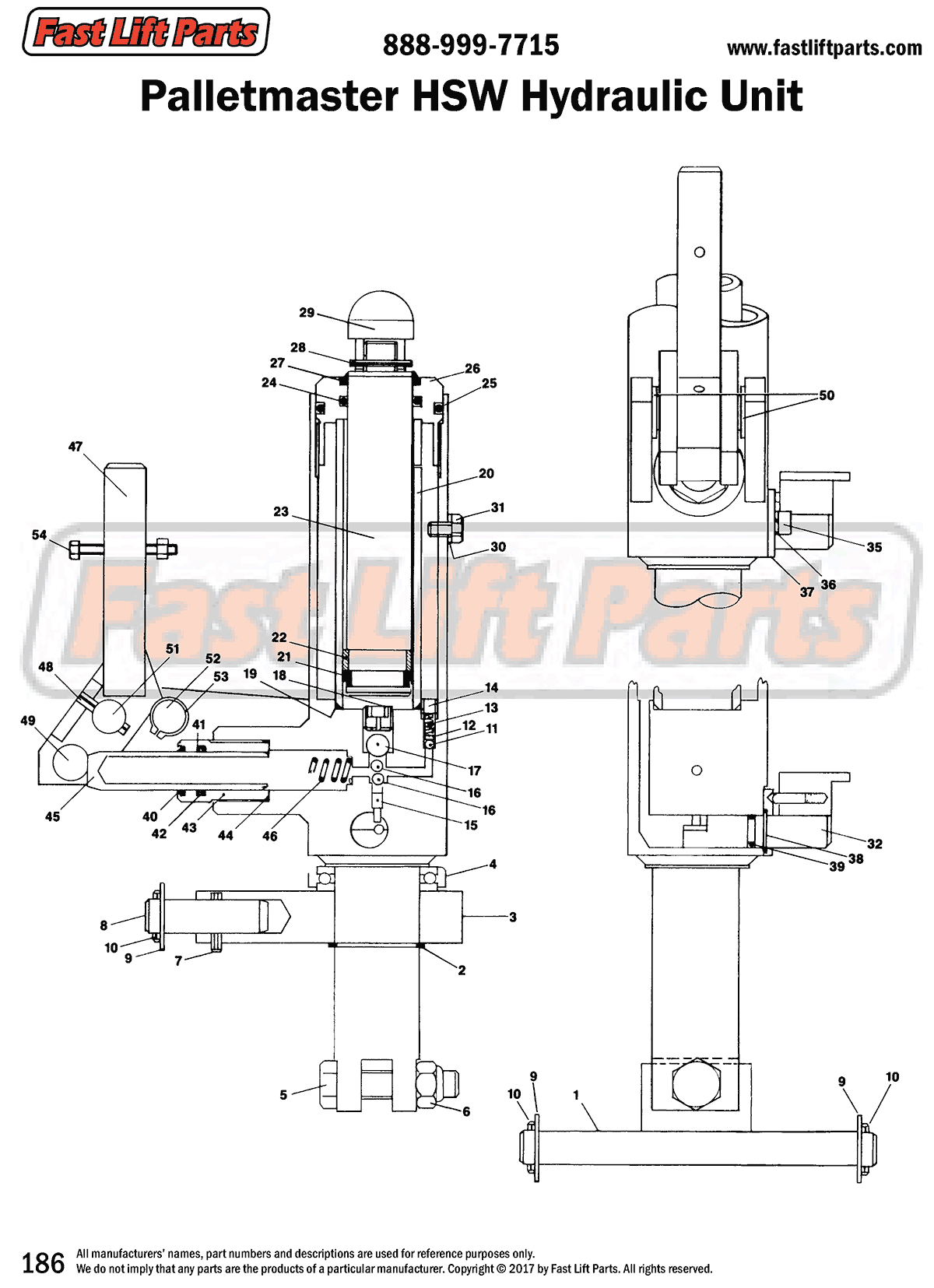

Identify your part using this line drawing of the hydraulic unit.

Locate a part on the Frame.

    1. PM A1 Steer Wheel Axle
    2. PM A2 Snap Ring
    3. PM A3 Traverse
    4. PM A4 Traverse Bearing
    5. PM A5 Bolt
    6. PM A6 Nut
    7. PM A7 Roll Pin
    8. PM A8 Pin
    9. PM A9 Washer
    10. PM A11 Roll Pin
    11. PM L1 Ball
    12. Not available Insert (no longer needed)
    13. PM L2 Spring
    14. PM L3 Ball
    15. PM L4 Release Pin
    16. PM L5 Ball
    17. PM L6 Ball
    18. PM L7 Flow Valve
    19. PM L8 O-Ring
    20. PM L9 Sleeve
    21. PM L10 U-Cup
    22. PM L11 Bushing
    23. PM L12 Ram (Older Style, Serial #00043 and lower)
      PM L12A Ram
    24. PM L13 O-Ring
    25. PM L14 O-Ring
    26. PM L15 Top Nut
    27. PM L16 Scraper
    28. PM L17 Roll Pin
    29. PM L18 Top Pivot
    30. PM L19 Washer
    31. PM L20 Filler Plug
    32. PM F1 Foot Pedal
    33. ----
    34. ----
    35. PM F4 Bolt, 3/8"
      PM F4-5 Bolt, 5/16"
    36. PM F5 Lock Washer
      PM F5-5 Lock Washer
    37. PM F6 Detente Plate 3/8"
      PM F6-5 Detente Plate 5/16"
    38. PM F7 Snap Ring
    39. PM F8 O-Ring
    40. PM P1 Scraper
    41. PM P2 Back-Up Ring
    42. PM P3 O-Ring
    43. PM P4 Sleeve
    44. PM P5 O-Ring
    45. PM P6 Piston
    46. PM P7 Spring
    47. PM P8 Handle Bracket
    48. PM P9 Roll Pin
    49. PM P10 Roller
    50. PM P11 Bushing
    51. PM P12 Pin
    52. PM P13 Stop Shaft
    53. PM P14 Snap Ring
    54. PM 01.23 Hangle Bolt and Nut


Kit(s):

This item is either out of stock or cannot be ordered online. Please call to confirm price, availability, and/or freight costs.
