• Hydraulic Unit Identification - *Uline H-2708, H-2900, H-3045 Hydraulic Unit

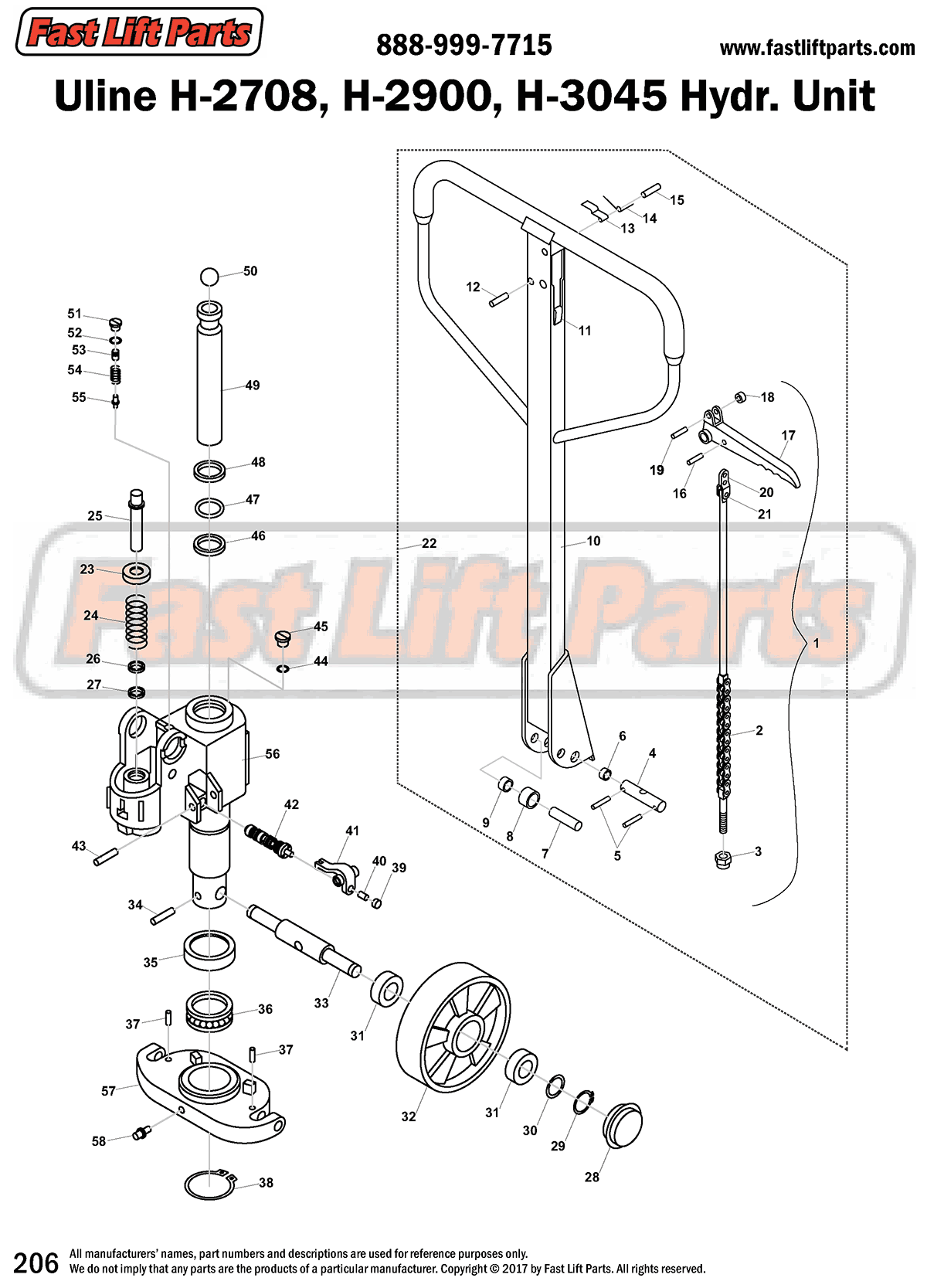

  • Uline H-2708, H-2900, H-3045 Hydraulic Unit Line Drawing
1 2

Uline

*Uline H-2708, H-2900, H-3045 Hydraulic Unit

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. UE H-2708-AC101-A Control Rod Assembly Includes 2,3, 16-21
  2. UE H-2708-AC102 Chain & Adjustment Bolt
  3. UE H-2708-AC104 Adjustment Nut
  4. UE H-2708-AC105 Handle Axle
  5. UE H-2708-AC106 Spring Pin
  6. UE H-2708-AC107 Bushing
  7. UE H-2708-AC108 Roller Pin
  8. UE H-2708-AC109 Pressure Roller
  9. UE H-2708-AC109A Bushings
  10. UE H-2708-AC110 Handle Frame (NLA)
  11. UE H-2708-AC111 Rubber Stop
  12. UE H-2708-AC112 Spring Pin
  13. UE H-2708-AC113 Blade Spring
  14. UE H-2708-AC114 Spring
  15. UE H-2708-AC115 Spring Pin
  16. UE H-2708-AC116 Spring Pin
  17. UE H-2708-AC117 Control Handle
  18. UE H-2708-AC118 Roller
  19. UE H-2708-AC119 Spring Pin
  20. UE H-2708-AC121 Pivot Hinge
  21. UE H-2708-AC122 Pin
  22. UE H-2708-AC110 Handle Assembly Complete Inc. 1-21
  23. UE H-2708-AC301 Spring Cap
  24. UE H-2708-AC302 Spring
  25. UE H-2708-AC303 Pump Piston
  26. UE H-2708-AC304 Wiper
  27. UE H-2708-AC305 U-Cup
  28. UE H-2708-AC306 Hub Cap
  29. UE H-2708-AC307 Snap Ring
  30. UE H-2708-AC308 Washer
  31. UE H-2708-AC309 Bearing
  32. Steer Wheel Assembly Options
  33. UE H-2708-AC316 Steer Wheel Axle
  34. UE H-2708-AC311 Spring Pin
  35. UE H-2708-AC337 Bearing Cover
  36. UE H-2708-AC315 Thrust Bearing
  37. UE H-2708-AC312 Spring Pin
  38. UE H-2708-AC314 Snap Ring
  39. UE H-2708-AC317 Nut
  40. UE H-2708-AC318 Adjustment Screw
  41. UE H-2708-AC319 Lever Plate
  42. UE H-2708-AC321 Valve Cartridge
  43. UE H-2708-AC320 Spring Pin
  44. UE H-2708-AC323 Seal Washer
  45. UE H-2708-AC324 Screw Plug
  46. UE H-2708-AC325 U-Cup
  47. UE H-2708-AC326 O-Ring
  48. UE H-2708-AC327 Wiper
  49. UE H-2708-AC328 Lift Piston
  50. UE H-2708-AC329 Ball
  51. UE H-2708-AC330 Screw Plug
  52. UE H-2708-AC331 O-Ring
  53. UE H-2708-AC332 Adjustment Screw
  54. UE H-2708-AC333 Spring
  55. UE H-2708-AC334 Overload Valve
  56. UE H-2708-AP100 Hydraulic Unit Complete
  57. UE H-2708-AC313 Traverse Plate
  58. UE H-2708-AC335 Lube Fitting
  59. UE H-2708-AK100 Seal Kit (Not Shown)
