*Global 334475 Hydraulic Unit

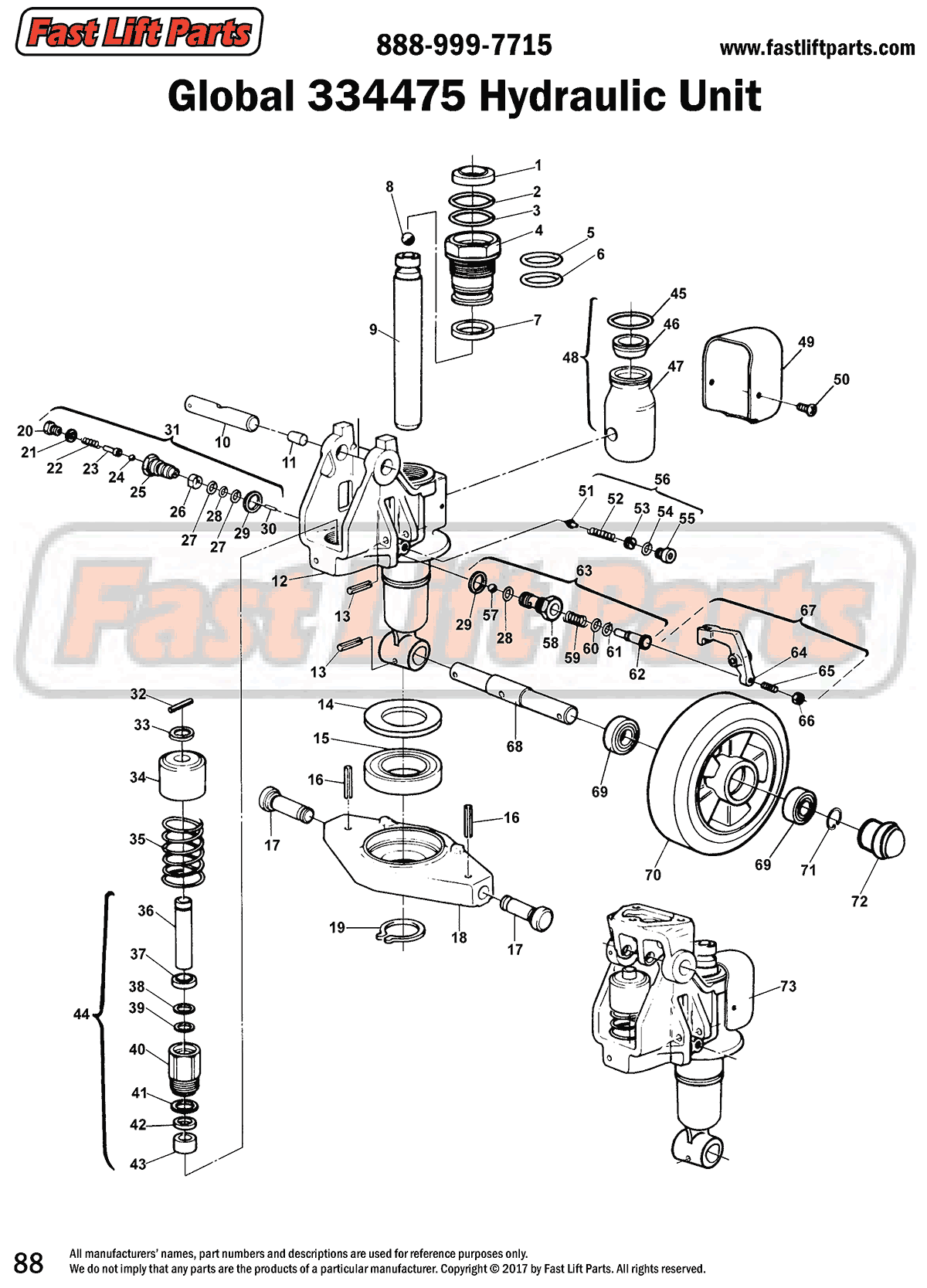

Identify your part using this line drawing of the Hydraulic Unit.

Locate a part on the frame.

  1. HL 156 Scraper Oil Seal
  2. HL 170 Retainer
  3. HL 157 O-Ring
  4. HL 159H Top Nut
  5. HL 157-1 O-Ring
  6. HL 158H O-Ring
  7. HL 160H U-Cup
  8. HL 101 Ball
  9. HL 102 Ram
  10. HL 109 Handle Pin
  11. HL 120 Bushing
  12. HL 122H Pump Body
  13. HL 121 Roll Pin
  14. HL 123 Dust Cover
  15. HL 124 Thrust Bearing
  16. HL 154 Roll Pin
  17. HL 155 Shoulder Pin
  18. HL 153 Traverse
  19. HL 153-A Traverse Assembly (Includes item 15)
  20. HL 152 Snap Ring
  21. HL 110 Screw Plug
  22. HL 111 Washer
  23. HL 112 Spring
  24. HL 113 Spring Guide
  25. HL 114 Ball
  26. HL 115 Valve Body
  27. HL 116 Spring
  28. HL 166 Retainer
  29. HL 117 O-Ring
  30. HL 118 Washer
  31. HL 119 Valve Pin
  32. HL 115-A Valve Assembly
  33. HL 142 Roll Pin
  34. HL 143 Retainer Cover
  35. HL 144 Spring Cap
  36. HL 144-A Spring Cap Assembly (Includes Items 32-34)
  37. HL 145 Spring
  38. HL 146 Piston
  39. HL 147 Scraper
  40. HL 168 Retainer
  41. HL 169 O-Ring
  42. HL 148 Pump Cylinder
  43. HL 151 Washer
  44. HL 149 U-Cup
  45. HL 150 Nylon Bushing
  46. HL 146-A Pump Piston Assembly (Includes 36-43)
  47. HL 161H O-Ring
  48. HL 162H Filler Plug
  49. HL 165H Reservoir
  50. HL 165H-A Reservoir Assembly (Includes Items 45, 46, 47 & Pint of Oil
  51. HL 163H Cowling
  52. HL 163H-A Cowling Assembly (Includes items 49 & 50)
  53. HL 164H Screw
  54. HL 135 Spring
  55. HL 136 Adjustment Screw
  56. HL 137 O-Ring
  57. HL 138 Screw
  58. HL 138-A Safty Valve Assembly (Includes Items 51-55)
  59. HL 129 Ball
  60. HL 130 Release Valve Body
  61. HL 131 Spring
  62. HL 132 O-Ring
  63. HL 167 Retainer
  64. HL 133 Release Pin
  65. HL 130-A Plunger Assembly (Includes Items 28, 29, 57-62)
  66. HL 139H Release Lever
  67. HL 140H Adjusting Screw
  68. HL 141 Nut
  69. HL 139H-A Activator
  70. HL 125 Steer Wheel Axle
  71. HL 126 Bearing
  72. Steer Wheel Assembly Options
  73. HL 128 Snap Ring
  74. HL 171 Dust Cover
  75. HL 100-AM Hydraulic Unit Complete
  76. HU HL100 Rebuilt Hydraulic Unit-Exchange
  77. HL 99 Seal Kit
