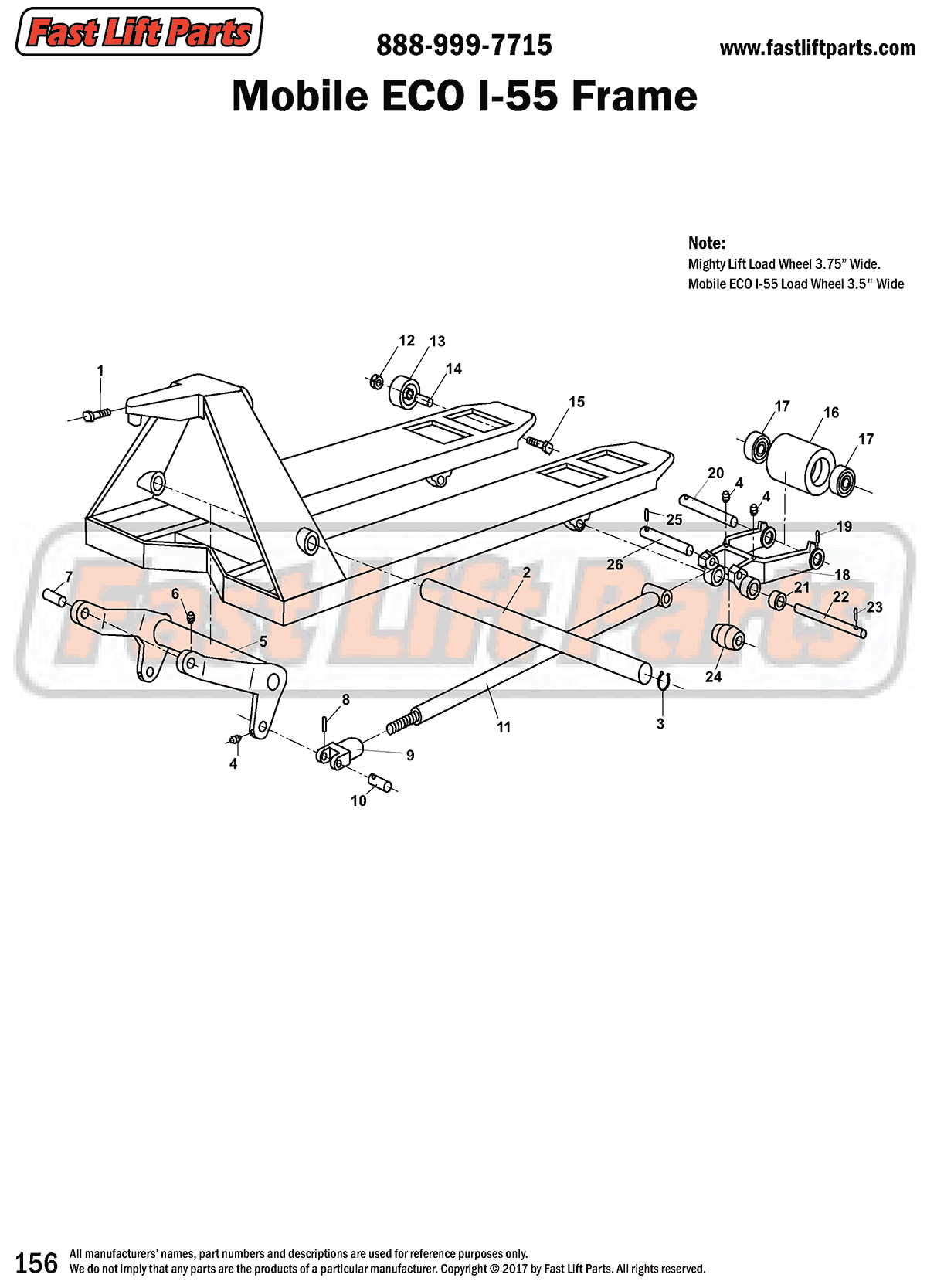

• Mobile ECO I-55 Frame Line Drawing
1 1

Mobile

*Mobile ECO I-55 Frame

Identify your part using this line drawing of the frame.

Locate a part on the hydraulic unit.

  1. MO 120E42 Bulkhead Bolt
  2. MO 120E20 Bell Crank Shaft
  3. MO 120E21 Locking Ring
  4. MO 120E15 Grease Fitting (Threaded)
  5. MO 120E43 Lifting Link
  6. MO 120E22 Oiler
  7. MO 120E14 Bell Crank Pin
  8. MO 120E16 Roll Pin
  9. MO 120E17 Joint
  10. MO 120E18 Joint Pin
  11. MO 120E19 Push Rod
  12. MO 120E39 Nut
  13. MO 120E38 Entry Roller
  14. MO 120E37 Sleeve
  15. MO 120E36 Front Guide Roller Bolt
  16. Load Roller Assembly Options
  17. MO 120E9 Bearing
  18. MO 120E31 Hanger Bracket
  19. MO 120E30 Roll Pin
  20. MO 120E29 Roller Axle
  21. MO 120E28 Rear Guide Roller
  22. MO 120E26 Hanger Axle
  23. MO 120E27 Roll Pin
  24. MO 120E23 Exit Roller
  25. MO 120E24 Roll Pin
  26. MO 120E25 Push Rod Axle
